Normal working and installation conditions

◆ Surrounding air temperature: The upper limit of the surrounding air temperature shall not exceed+40 ℃; the average value of the surrounding air temperature within 24 hours shall not exceed+35 ℃. The lower limit of the ambient air temperature shall not be lower than -5 ℃.
◆ Humidity: When the maximum temperature is+40 ℃, the relative humidity of the air does not exceed 50%. Higher relative humidity can be allowed at lower temperatures, such as reaching 90% at 20 ℃
Special measures should be taken for occasional condensation caused by humidity changes.
◆ Installation conditions: Installed in a place without impact, vibration, or rain or snow invasion; Connect the upper terminal to the power supply side and the lower terminal to the load side; The inclination to the vertical plane shall not exceed 5 °.
The external magnetic field near the installation site shall not exceed 5 times the geomagnetic field in any direction.
The altitude of the installation site shall not exceed 2000m.
◆ Installation category: III
Pollution level: 3
Structure and working principle
structure

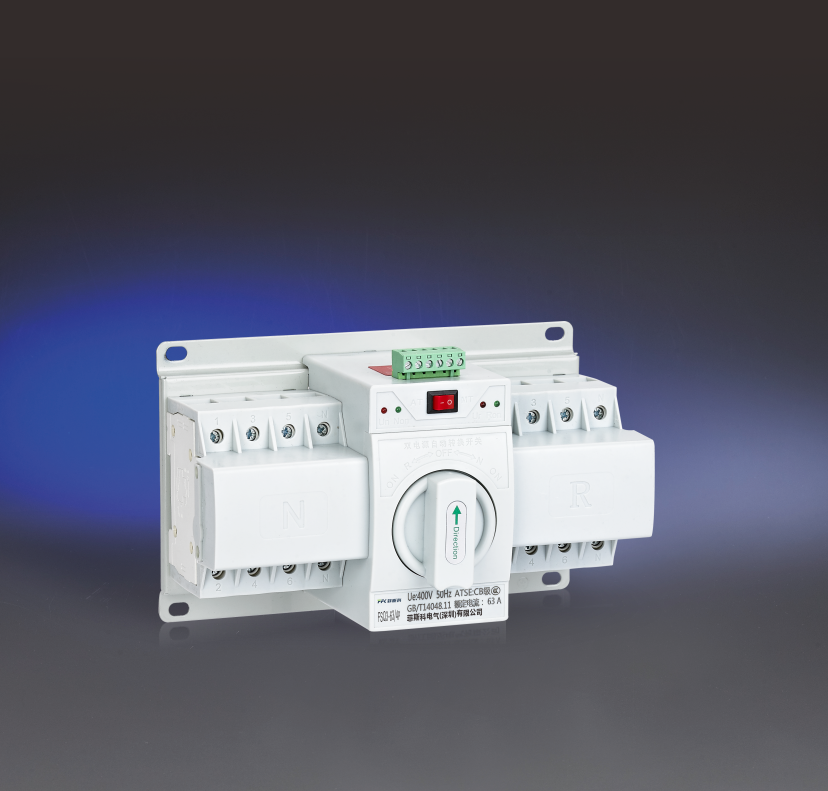

The FSQ3 dual power switch mainly consists of two miniature circuit breakers, motors, controllers, and mechanical rotating devices. The switch has three states and positions for users to choose from. Commonly used power supply
Double split, backup power supply on.
◆ Adopting high breaking miniature circuit breakers with circuit breaker breaking capacity and characteristics.
◆ It has the advantages of simple and practical structure, convenient operation, no noise, low impact force, and long service life.
operational principle
The dual power automatic transfer switch detects two power sources through the controller. When one power source is abnormal, the controller makes a logical judgment on the detection result and drives it according to the controller's instructions
The operating mechanism opens or closes to ensure safe and reliable power supply to the load.

Main parameters and technical performance
Basic parameters of dual power automatic transfer switch terminal type and intelligent type

Product model: End type
Installation method: integrated
Operation mode: automatic and manual
Monitoring function: phase failure detection
Conversion method: self switching and self resetting
Fire linkage control: None
Display function: signal indication function
Product model: Intelligent
Operation mode: automatic, manual, and dual split
Monitoring function: detection of three-phase undervoltage, phase loss, and phase failure in commonly used power supplies
Fire linkage control: DC12-24V input dual split (fire automatic cut-off function)
Basic parameters of dual power automatic transfer switch
Compliant with standard: GB/T 14048.11
ATS level: CB level
Usage type: AC-33iB
Rated working voltage Ue: AC220-400V
Rated operating frequency: 50Hz/60Hz
Rated working current le: 6A, 10A, 16A, 20A, 25A, 32A, 40A, 63A
Switch control voltage: AC220V
Rated insulation voltage Ui: AC690V
Conversion action time:<3s (non adjustable, factory adjusted)
Lifetime: Electrical Lifetime -1500 times
Mechanical lifespan -6000 cycles
Rated short-circuit making capacity lcm: 7.5kA
Rated short-circuit breaking capacity lcu: 5kA

Ordering Instructions

Users must specify when placing an order:
The name and model of the dual power automatic transfer switch;
Rated current IA of dual power automatic transfer switch;
◆ Number of poles (four poles, if not specified by the customer, the product is a three-phase four wire system);
Controller type for dual power automatic transfer switch;
Quantity.
◆ Customer requirements for miniature circuit breakers DZ47 or C65
For example: Order dual power automatic transfer switch, three pole, rated current 6A, terminal type, quantity 50 units. Can be written as: FSQ3-63/3P6A 50 units.
Ordering dual power automatic transfer switch, four pole, rated current 63A, intelligent type, micro circuit breaker requires C45D type, with a required quantity of 50 units.
Can be written as: FSQ3-63/4PZ63A C45D 50 units.
