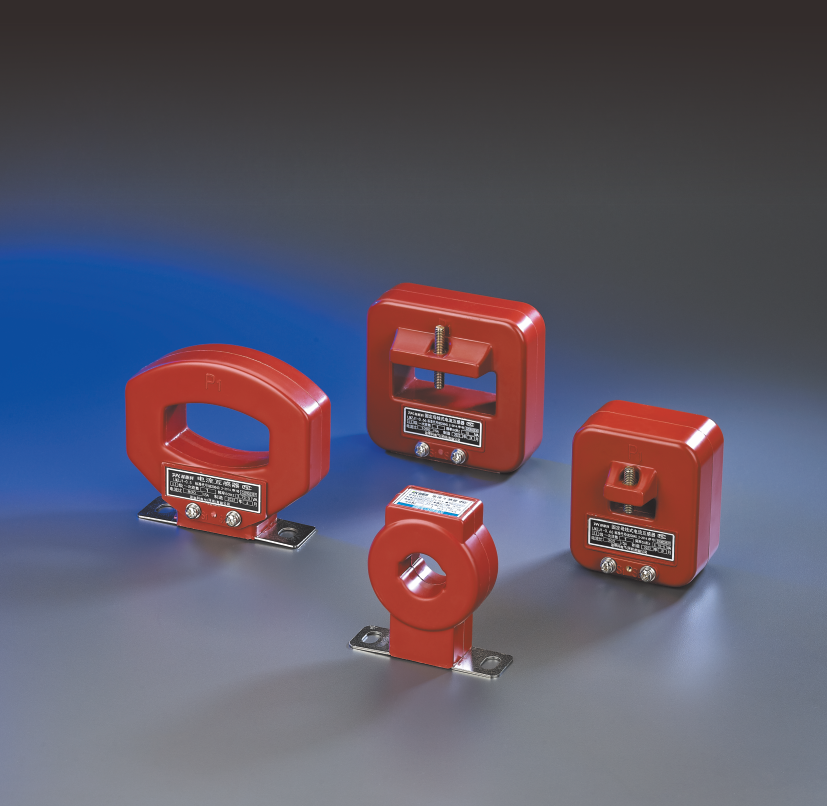

Current transformer LMZJ1-0.5/0.66-5A~5000A

LMZJ1-0.5/0.66 series current transformers are suitable for current and energy measurement or relay protection in AC lines with a rated frequency of 50Hz and a rated voltage of 0.66kV and below. The product is a plastic shell current transformer, widely used in complete cabinets. Its installation method can adopt the fixed installation method of busbar and bottom plate, suitable for installation in any direction. The primary wire can be busbar or cable.
Compliant with standard: GB/T 20840.1 GB/T 20840.2

Category :
Current Transformer
Browse number : ...
Release time : 2024-04-02

Consult immediately

Detailed introduction

Main technical parameters

Model: LMZ1-0.5
Rated current: 5/5-300/5
Rated load: 5
Rated voltage: 0.5
Rated frequency: 50/60
Model: LMZJ1-0.5
Rated current: 5/5-300/5
Rated load: 5
Rated voltage: 0.5
Rated frequency: 50/60
Model: LMZJ1-0.5
Rated current: 400/5-600/5
Rated load: 5
Rated voltage: 0.5
Rated frequency: 50/60
Model: LMZJ1-0.5
Rated current: 800/5-5000/5
Rated load: 5-30
Rated voltage: 0.5
Rated frequency: 50/60
LMZK1-0.66 series
Primary current: 5A-5000A
Secondary current: 5A, 1A
Rated voltage: 0.5kV/0.3kV
Rated frequency: 50/60Hz
Rated load: 1-30VA
◆ Accuracy level: 0.5 0.2 0.5S 0.2S
Rated safety factor: Fs<5

Technical Parameter

Model: LMZJ1-0.66
Rated current: 100/5-300-5, 300/5-400/5, 400/5-600/5, 750/5-800/5, 1000/5-1500/5, 2000/5-3000/5
Inner diameter: 35-140
Rated load: 1.5-30
Level: 0.5/0.2
Rated voltage: 660
Rated frequency: 50/60
